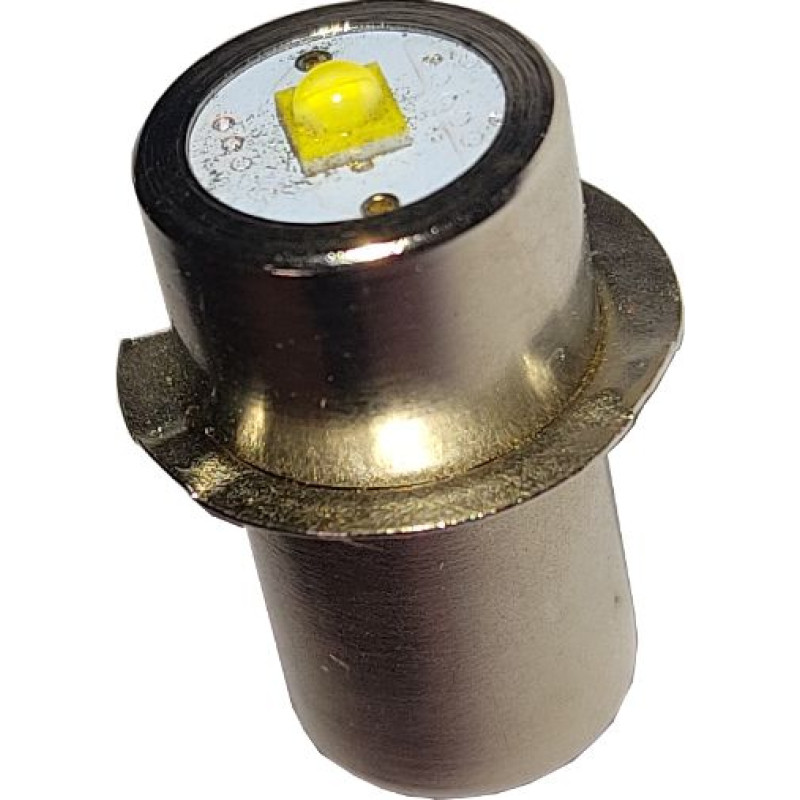

220 Lumens 2 to 6D Cell LED Upgrade

Lumen Rating:

-High quality Cree LED retrofits 2 to 6D cell battery incandescent Maglite flashlight.

-Premium 3 watt superior LED Bulb.

LED Installation:

flashlight,

1. Unscrew the head of your Maglite which holds the lens, do not unscrew the Face-cap.

2. Remove the Head of the Maglite from the Barrel.

3. The Bulb and the bulb retaining ring will be exposed. Unscrew the bulb retaining ring and take both the Bulb and the bulb retaining ring off the switch.

4. Replace the bulb with your NEW 220 Lumen LED module. Place the bulb retaining ring over the LED module and screw back into place.

5. Screw the head of the Maglite back on to the body until it is "snug", do not over tighten.
